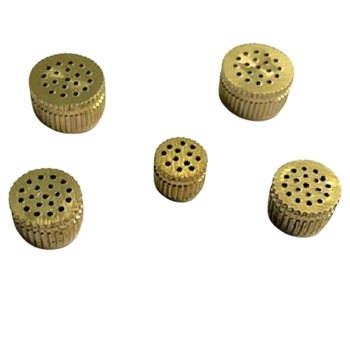

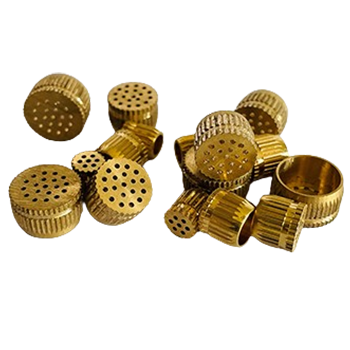

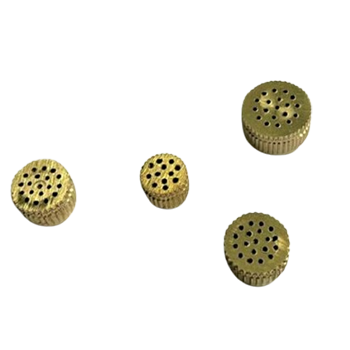

Hole Type Core Vent
| Type | Hole Type |
|---|---|
| Hole Dimention | 1mm to 1.5mm |
| Application | Dia Castiong ,Foundart Casting, Dia Mackig, Hot Air To Cool Air Vent, Air Box |
Description
Hole type Core vents are holes for the passage of air gases into the atmosphere outside the die cavity, causing rapid expansion of cool air inside the cavity.
Size
| OD | 4MM | 5MM | 6MM | 8MM | 10MM | 12MM | 14MM | 16MM | 18MM | 20MM | 22MM | 25MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEIGHT | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM | 7MM |
| HEIGHT | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM |
| HEIGHT | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM | 10MM |
